NEW SCANNER TECHNOLOGY Scan small and large documents
– up to A1/D-size
Connects directly to your global network, supporting your wide-format workflows
Work faster and save money by scanning and copying wide format drawings, plans, and technical documents right where you work. Scan changes to drawings, documents, and blueprints and e-mail to clients and colleagues instantly. Using simple one-touch buttons you can scan directly over the network to your desk and continue working instantly. This scanner is a table model and will fit directly on any office desk.
Improve your workflow and communicate effectively Avoid delays and save on courier and out-of-house printing expenses. This professional sheet-feed plug‘n’play scanner fits with your existing software and printers. Get precise, accurate images with high 1200 DPI optical resolution and save on file space with intelligent 8-bit indexed color capture – ideal for archiving many types of files. Also available as MFP solutions with your existing printer for easy scan-to-copy.
Features
Specifications
Technology
Options
Warranty

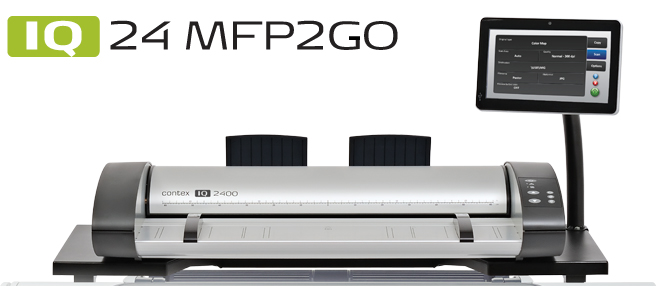

IQ-24 MFP2GO
Gigabit Ethernet with xDTR2 standard
Scanner sharing across a network, and sending files to remote desktop
Enhanced image quality with Contex patented CIS technology and new CIS modules.
Superior image quality with Contex patented color-fringe removal (CFR)
ENERGY STAR compliant, using just 1W in standby
1200dpi optical resolution standard
24" wide document handling
All-Wheel-Drive (AWD) for a perfect grip on your documents
See what you scan with face-up scanning
One-touch scanning
Contex IQ 2490
Optical Resolution
1200dpi
Maximum Resolution
9600dpi
Maximum Scan Width
24in. (610mm)
Maximum Media Width
26.6in. (676mm)
Maximum Media Thickness
0.08-inch (2mm) flexible documents only
Accuracy
± 0.1% +/- 1 pixel
Data Capture (color/mono)
48-bit/16-bit
Color Space
Adobe RGB / sRGB / Device RGB
Interface High Speed
USB with xDTR and Gb Ethernet with xDTR2
Power Requirements
110V / 220V / 240V, 60/50 Hz, 25W
Power Operational / Sleep mode
8W / 1W / 18W – ENERGY STAR compliant
Weight & Dimensions LxDxH
35.5 Ibs. (16.1 kg) / 32.4x18.9x6.3 inches (824x480x161 mm)
Certifications/Compliance
CE, cUL, VCCI, FCC Class A, RoHS, GOST-R and ENERGY STAR
Software
Software
Nextimage 30-day trial included
AutoCAD®, MicrostationTM, ArcGISTM and all other CAD, GIS and other image editing / storage applications)
Device Drivers
32 and 64-bit Windows 7, XP and Vista
ISIS & TWAIN Drivers
32-bit TWAIN application driver included for use with EDM and other imaging software
Scanning Speed (inch/sec.): Scanner speed while scanning 24-inch wide document.
400dpi (Turbo) RGB Color
3.0
400dpi (Turbo) Grayscale/Monochrome
10.0
Productivity (documents/hour): Batch scanning for 60 minutes. Includes paper load and eject time. Measured in completed scans.
D-size, RGB Color, 200dpi
250
D-size, Monochrome, 200dpi
539
A1-size, RGB Color, 200dpi
240
A1-size, Monochrome
514
Key technologies in Contex IQ scanners
As the world’s largest developer and producer of wide format imaging solutions, Contex leads the market with innovative technology and advanced scan and copy software solutions. The IQ series of scanners utilizes a long list of key technologies unique to a Contex scanner.
i1 profiles from X-Rite
Using X-Rite generated profiles ensures the highest possible color accuracy for the demanding customers. X-Rite is the global leader in color science and technology.
Adobe RGB, Device RGB and sRGB
Contex IQ series scanners have several different options for color space. In addition to the common sRGB the IQ scanners also offers color spaces with wider gamut as preferred by color specialists.
Adobe RGB and Device RGB has a larger color gamut than sRGB, hereby allowing differences in very bright and saturated colors to be maintained in the file.
Contex Natural Light
IQ scanners use new CIS modules with dual diffusion. By using correct diffusion in IQ scanners you get the most natural light in any CIS scanner.
Natural light is diffused light that creates soft shadows
Single sided LED light traditionally causes hard shadows.
Dual sided LED light normally creates 2 hard shadows.
Contex New Dual
Diffusion CIS Modules
in
IQ scanners
ensures
the must
natural
representation
of any image.
Live Matching of CIS modules
IQ scanners use new CIS modules with dual diffusion. By using correct diffusion in IQ scanners you get the most natural light in any CIS scanner.
New in IQ scanners: Live matching of CIS modules.
While scanning Contex Live Matching technology will monitor images and correct differences from one CIS module to the next. Without this there might be noticeable difference between CIS modules.
This unique technology is a key part of providing Market leading CIS solutions.
Traditional CIS scan without live matching.
The left side is darker than the right side
New CFR Technology
Contex innovative Color Fringe Removal has been further improved with the IQ scanners. Color fringe is a result of CIS scanners using flashing red, green and blue LED lights. This causes black lines and text to have colored edges especially when scanning at lower resolutions.
Thanks to Contex innovative thinking this effect has been completely removed in the IQ scanners with CFR.
Delivering 3 times the bandwidth of USB2, our unique Gigabit Ethernet implementation with xDTR2 is lightning fast and accelerates workflows even further via network sharing, where scans can be controlled from any computer.
2-year warranty and fast, easy parts replacement
With Contex, vital scanner parts replacement is quick, easy and hassle-free. Your Contex system monitors vital parts such as lamp and dust filters and lets you know when it’s time to consider a replacement.
The advantage?
You save time and money on technical service – and keep your business running without costly delays. And with a 2-year warranty on most parts, you can rest assured that your Contex won’t let you down. Please contact your local sales representative for additional information on pricing and options.
The warranty period is two (2) years from the date of invoice to the final customer.
Contex warrants that the scanners are delivered in the latest revision, free of defect arising from design, material or workmanship.
Contex' support obligation is limited to the repair or replacement of any faulty parts. The obligation only entails faulty items which are not results of:
Faults or negligence of the user
Improper or unauthorized use of the scanner
Attempts to repair the equipment by the user or other unauthorized persons
Causes external to the equipment or part thereof such as, but not limited to, power failure, catastrophes or unusual environmental conditions.
Consumables, such as parts affected by normal wear and tear (lamps, glass, white background plates, filters) are not covered by the 2-year warranty plan.
5-year spare parts support
In addition, Contex will guarantee spare parts support for a period of five (5) years from the date of discontinuation of the products, whenever this occurs, providing you the peace of mind that we will stand behind our products for many years after your purchase.
Description
Mfg#
Price
Cart
Third year coverage
(add on to 2 yr standard warranty) at time of scanner purchase
One year onsite post warranty
Use this option for cases where all warranty contracts have
expired and the end-user desires to purchase a onsite warranty.
Do you waste precious time trying to communicate the changes made to drawings and plans to your clients and colleagues? Do you want to reduce outside scanning and copying costs but hesitate to invest in a pricey professional copier? Now there’s an easy and affordable way to scan, copy, and distribute wide-format documents, plans, drawings, and changes from wherever you work directly to your global network.
Rugged and reliable with Gigabit Ethernet, the Contex IQ 24 MFP2GO is easy to use and designed to fit your multi-site project workflows.
Create custom single footprint MFP solutions in combination of a long list of supported printers.
MFP2GO Controller
Intel Cedarview D2550 Dual Core 1.86G, L2 1M, 10W
1 GB DDR3 RAM / 160 GB SATA
Windows 7 Embeded
Built-in scanning and copying software
10.1" LED LCD, 1024x600 Pixels
USB Printer Support / USB Scanner Support / USB Disk Support / GB Ethernet
3.3 lbs/1.5 kg, WxDxH: 10.4 x 1.5 x 6.7 inches (263 x 38 x 170 mm)
TIF, JPG, PDF and CALS
