SCAN RIGHT IN YOUR OFFICE With its lightweight design, exceptional
ease of use and
very attractive price,
it is a must-have scanner
Scanning wide format documents
is easy and affordable with the smart,
compact SD3600
The Contex SD3650 packs a huge amount of wide format value into its compact 36”,
portable package. With its lightweight design, exceptional ease of use and very
attractive price, it is a must-have scanner for any office that wants to save time and
money by scanning oversized maps and technical drawings in-house.
Scan wide format documents right in your office
With the SD3650, anyone in your office can now scan wide format documents for copying, sharing and collaborating. You’ll save time and money by handling oversized documents in-house. And you’ll benefit from unmatched ease of use, consistent high quality, and enhanced productivity—all at an affordable price.
Space-saving design
The SD3650 offers all the advantages of other SD Series scanners, but features a new compact design. It fits discreetly into your office environment, and its many functions are perfectly engineered for easy setup, use and maintenance.
Lightweight and transportable
Many businesses find it convenient to be able to move their scanners around the office, close to archiving equipment or printers, for example. The compact, lightweight SD3650 fits into small spaces, is very easy to transport, and can be shared across you network, so you can use it from any location.
Grows with your business
Another great advantage is upgradeable speed and resolution. That means your scanner can meet all your needs today, and then grow along with your business.
Features
Specifications
Technology
Options
Warranty
SD-36 MFP2GO
Up to 1200dpi high resolution scanning
Compact, lightweight design
Programmable One-Touch buttons – common tasks can be assigned to 3 simple buttons
All-Wheel-Drive (AWD) for a perfect grip on your documents
Exceptional productivity, scanning up to 336 D-size color documents per hour (324 A1/hour)
User upgradable – Need color? More speed? Higher resolution?
Upgrading is electronic, fast and easy See what you scan with face-up scanning
SmartShare function for scanner sharing across a network, and sending files to remote PCs
ENERGY STAR compliant, using less than 4W in standby
Nextimage 2.0 – powerful sharing, archiving, and copying in one application
Model
SD3650 PLUS
Optical Resolution
1200dpi
Maximum Resolution
9600dpi
Maximum Scan Width
36in. (914mm)
Maximum Media Width
38in. (965mm)
Maximum Media Thickness (flexible documents only)
0.08-inch (2mm)
Accuracy
0.1% +/- 1 pixel
Data Capture (color/mono)
48-bit / 16-bit
Color Space
sRGB
Interface
USB 2.0 with xDTR
Power Requirements
110/220/240V, 60/50Hz, 25W
Power (Operational / Sleep mode)
Less than 20W / Less than 2W - ENERGY STAR compliant
Weight & Dimensions
LxWxH 21.1 kg (46.5 lbs) / 45.6 x 12.9 x 5.5 inches (115.9 x 32.7 x 14.0 cm)
Certifications/compliance
ENERGY STAR, RoHS, UL, CE, GOST-R, VCCI, FCC: CLASS A
Device Drivers
32 and 64-bit Windows 7, XP and Vista
TWAIN
TWAIN driver included for use with EDM and other imaging software
Scanning Speed*** (inch/sec.): Scanner speed while scanning 36-inch wide document.
200dpi RGB Color
1.5
200dpi Index Color
1.5
200dpi Grayscale/Monochrome
10.0
Productivity*** (documents/hour): Batch scanning for 60 minutes. Includes paper load and eject time. Measured in completed scans.
D-size, RGB Color, 200dpi
198
D-size, Monochrome, 200dpi
780
A1-size, RGB Color, 200dpi
192
A1-size, Monochrome
744
Key technologies in Contex SD3600 series scanners.
As the world’s largest developer and producer of wide format imaging solutions, Contex leads the market with innovative technology and advanced scan and copy software solutions. The SD3600 series of scanners utilizes a long list of key technologies unique to a Contex scanner.
Contex Unibody Technology
The SD3600 series scanners body is an extrusion from a single alluminium block. This unique and accurate design combined with xDTR, CFR and SIGMA ensures the highest quality CIS scanners in the market.

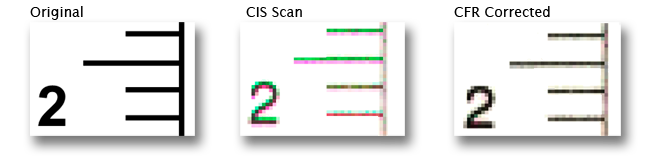

Color Fringe Removal (CFR) is a Contex Patent
Color Fringing is a natural consequence of CIS technology sequentially flashing R-G-B.Thanks to Contex innovative thinking CFR will remove this problem with advanced filter technology.
Signal Intensity Matching (SIGMA) is a Contex Patent
Sensor heating during a scan can cause inhomogeneous images. Thanks to Contex innovative thinking Contex SD3600 scanner will minimize sensor differences LIVE during a scan.
xDTR
Contex scanners with xDTR improve overall productivity by increasing the data transfer speed of the USB interface, so more image data can be sent to the PC, faster. This means larger documents (and more documents) can be scanned at higher resolutions without waiting for data transfer to complete. A scanner without xDTR may capture an A2 or C-size color document in eight seconds, while a scanner with xDTR can capture an A1 or D-size color document in the same time, or less. If scanning batches of documents or scanning at 400dpi or more, the difference is even greater.
2-year warranty and fast, easy parts replacement
With Contex, vital scanner parts replacement is quick, easy and hassle-free. Your Contex system monitors vital parts such as lamp and dust filters and lets you know when it’s time to consider a replacement.
The advantage?
You save time and money on technical service – and keep your business running without costly delays. And with a 2-year warranty on most parts, you can rest assured that your Contex won’t let you down. Please contact your local sales representative for additional information on pricing and options.
The warranty period is two (2) years from the date of invoice to the final customer.
Contex warrants that the scanners are delivered in the latest revision, free of defect arising from design, material or workmanship.
Contex' support obligation is limited to the repair or replacement of any faulty parts. The obligation only entails faulty items which are not results of:
Faults or negligence of the user
Improper or unauthorized use of the scanner
Attempts to repair the equipment by the user or other unauthorized persons
Causes external to the equipment or part thereof such as, but not limited to, power failure, catastrophes or unusual environmental conditions.
Consumables, such as parts affected by normal wear and tear (lamps, glass, white background plates, filters) are not covered by the 2-year warranty plan.
5-year spare parts support
In addition, Contex will guarantee spare parts support for a period of five (5) years from the date of discontinuation of the products, whenever this occurs, providing you the peace of mind that we will stand behind our products for many years after your purchase.
Description
Mfg#
Price
Cart
Third year coverage
(add on to 2 yr standard warranty) at time of scanner purchase
One year onsite post warranty
Use this option for cases where all warranty contracts have
expired and the end-user desires to purchase a onsite warranty.

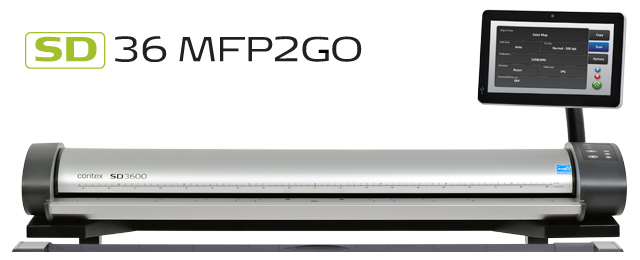

The Contex SD 36 MFP2GO packs a huge amount of wide format value into its compact 36", portable package. With its lightweight design, exceptional ease of use and very attractive price, it is a must-have scanner for any office that wants to save time and money by scanning maps and technical drawings in-house.
With the SD 36 MFP2GO, anyone in your office can now scan wide format documents for copying, sharing and collaborating. You’ll save time and money by handling oversized documents in-house. And you’ll benefit fr om unmatched ease of use, consistent high quality, and enhanced productivity—all at an affordable price.
Create custom single footprint MFP solutions in combination of a long list of supported printers.
MFP2GO Controller
Intel Cedarview D2550 Dual Core 1.86G, L2 1M, 10W
1 GB DDR3 RAM / 160 GB SATA
Windows 7 Embeded
Built-in scanning and copying software
10.1" LED LCD, 1024x600 Pixels
USB Printer Support / USB Scanner Support / USB Disk Support / GB Ethernet
3.3 lbs/1.5 kg, WxDxH: 10.4 x 1.5 x 6.7 inches (263 x 38 x 170 mm)
TIF, JPG, PDF and CALS
