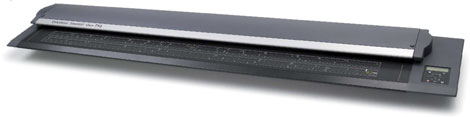

The Colortrac is another brand of wide format scanners but this one is made in England. The camera's they use are CIS type and will only scan paper or mylar but not thick material. Go 'super-size' with SmartLF Gx+ 56 extra-wide format scanners. With the widest imaging width of any sheet fed wide format scanner on the market, these scanners provide the ultimate format flexibility for service providers or users who need to cope with very large, over-size documents or want to capture landscape A0 / E-size drawings and plans right reading from the outset.
The SmartLF Gx+ 56 range offers high 600 dpi optical resolution, superior color CCD technology and the benefits of instant-on bi-directional LED illumination. These scanners meet the needs of AEC, CAD and GIS users for sharply defined line detail in technical documents and maps while producing the highly accurate color reproduction, copying and wide color gamut required for demanding graphics applications.
Colortrac is the most experienced and innovative manufacturer of CCD-based wide format color scanners and the Gx+ scanners now feature our unique bi-directional LED illumination system. LEDs save precious operator time as they require no warm-up and are only on when scanning. LEDs also save precious energy by qualifying for the industry standard ENERGY STAR® providing real cost of ownership benefits with lower utility bills and reduced maintenance costs due to the extra-long 50,000hr lifespan.
As the only scanner with "scan once" software that works in real-time to save you the need to rescan, the flexible SmartLF Gx+ 56 range is the most productive, lowest cost of ownership CCD-based extra-wide format scanning system available today.
Features
Specifications
Technology
Options
Warranty
Unique instant-on, long-life bi-directional LED illumination system
High definition (HD) CCD with 600 dpi optical resolution
High productivity 9ips monochrome and 3ips color scan speed at 200dpi
High fidelity 48-bit color graphics and crisp sharp line definition for maximum capability
Gigabit network or high speed, plug and play USB2 connections included
SmartWorks EZ Scan and Copy software included
SmartLF Gx+ 56 offers the EXTRA versatility and capability professional service providers require - at an affordable price!
Scanner Model
SmartLF Gx+ 56m
SmartLF Gx+ 56c
SmartLF Gx+ 56e
Type
Monochrome
Color
Express Color
Image Width
56" 142.3 cm
E size landscape
A0 landscape
56" 142.3 cm
E size landscape
A0 landscape
56" 142.3 cm
E size landscape
A0 landscape
Max Media Thickness
0.08" 2 mm
0.08" 2 mm
0.08" 2 mm
Optical Resolution
600 dpi
600 dpi
600 dpi
Scanning Speed
Monochrome: 9.00 inches per second
Color:
1.00 inches per second
Monochrome: 9.00 inches per second
Color:
3.00 inches per second
Monochrome: 9.00 inches per second
Scanner Model
SmartLF Gx+ T56m
SmartLF Gx+ T56c
SmartLF Gx+ T56e
Type
Monochrome
Color
Express Color
Image Width
56" 142.3 cm
E size landscape
A0 landscape
56" 142.3 cm
E size landscape
A0 landscape
56" 142.3 cm
E size landscape
A0 landscape
Max Media Thickness
0.8" 20 mm
0.8" 20 mm
0.8" 20 mm
Optical Resolution
600 dpi
600 dpi
600 dpi
Scanning Speed
Monochrome: 9.00 inches per second
Color:
1.00 inches per second
Monochrome: 9.00 inches per second
Color:
3.00 inches per second
Monochrome: 9.00 inches per second
All Colortrac SmartLF large format scanners come with SmartWorks EZ software, Windows Image Acquisition interface (WIA/STI), and Scanner utility software included.
- SmartWorks EZ software is very simple to use and designed for operation by non-specialist users. Choose your preferred method of controlling the SmartLF scanner with either keyboard, mouse or touch-screen modes, while providing all the basic scan to file and scan to copy functionality you need. SmartWorks EZ software saves your scanned documents as PDF, TIFF or JPG files individually or as a batch, and makes document copies to any printer through standard Windows printer drivers.
Supported File Formats
SmartWorks EZ v1.0.4.0 March 2011
Format Name
Tiff
TiffG4
JPEG
PDF
PNG
Description
Black and white, greyscale or color, no compression
Black and white, lossless, fixed compression
greyscale or color, lossy, fixed compression
Black and white, greyscale or color, lossy, fixed compression
Color (256 mode only), lossless, fixed compression
- Windows Image Acquisition interface (WIA/STI)
WIA is a technology that enables graphics software to communicate with imaging hardware such as scanners and digital cameras.
The WIA interface supplied with all Colortrac SmartLF wide format scanners means that you can use your scanner to scan directly into any imaging application that supports WIA/STI, for example Photoshop.
- Scanner utility software
All Colortrac SmartLF large format scanners are supplied with utility software that includes everything you need to keep your scanner in prime working condition and up-to-date with the latest firmware and driver versions.
