THE ALL NEW IQ 4490 New market leading CIS quality
for maps and technical documents
- up to 44" wide
Connects directly to your global network, supporting your wide-format workflows
IQ large-format scanners offer you an outstanding collaborative workflow whether you work with in-house scanning activities or in project groups of global players.
Using simple one-touch buttons you can scan directly over the network to your desk and continue working instantly. You get exceptional professional-grade quality with true 1200dpi optical resolution and patented technologies that ensure accurate results the first time.
Whether you are in a private business or government, the Contex IQ 4400 series is designed for collaboration projects through occasional scanning or the creation of digital archives. The 44" imaging area delivers clean, sharp image quality on technical documents, sketches, and maps.
New high standards
Contex sets the highest standards in scanning technical documents, maps and drawings. The IQ 4400 is built to withstand high-volume use on daily basis and is available in a new sleek and lightweight design. With IQ 4400 you get a total scanning solution with leading-edge software and network connectivity that fit your existing tools and business processes
Digital documents at once, anywhere
Instant-on scanning and one-touch interface save time in scanning large documents. Simply load your document and the scanner immediately comes to live. Click a one-touch button to scan directly to your preferred destination. Nextimage software makes scanning to file, to print, or to the network fast and simple.
Features
Specifications
Technology
Options
Warranty
IQ-44 MFP2GO
Gigabit Ethernet with xDTR2 standard
Scanner sharing across a network, and sending files to remote desktop
Enhanced image quality with Contex patented CIS technology and new CIS modules
Superior image quality with Contex patented color-fringe removal (CFR)
ENERGY STAR compliant, using just 1W in standby
1200dpi optical resolution standard
44" wide document handling
All-Wheel-Drive (AWD) for a perfect grip on your documents
See what you scan with face-up scanning
One-touch scanning
User upgradable – Need color? More speed? Higher resolution? Upgrading is electronic, fast and easy.
Optical Resolution
1200dpi
Maximum Resolution
9600dpi
Maximum Scan Width
9600dpi
Maximum Media Width
44in. (1118mm)
Maximum Media Thickness(flexible documents only)
47in. (1194mm)
Accuracy
0.08-inch (2mm)
Data Capture (color/mono)
0.1% +/- 1 pixel
Color Space
48-bit/16-bit
Interface
Adobe RGB / sRGB / Device RGB
Power Requirements
USB 2.0 with xDTR
Power
110/220/240V,60/50Hz, 50W
Weight & Dimensions
Operational / Sleep mode less than 20W / less than 2W – ENERGY STAR compliant
Certifications/compliance
LxWxH 30 kg (66 lbs) / 60 x 19 x 6.3 inches (153 x 48 x 16 cm)
Software Nextimage 30-day trial included
ENERGY STAR, RoHS, UL, CE, GOST-R, CCC, VCCI, KETI, BSMI, FCC: CLASS B
Device Drivers
32 and 64-bit Windows 7, XP and Vista
ISIS & TWAIN
ISIS & TWAIN drivers available for use with EDM and other imaging software
Scanning Speed* (inch/sec.): Scanner speed while scanning 36-inch wide document.
400dpi (Turbo) RGB Color
3.0
400dpi (Turbo) Index Color
3.0
400dpi (Turbo) Grayscale/Monochrome
10.0
Productivity** (documents/hour): Batch scanning for 60 minutes. Includes paper load and eject time. Measured in completed scans.
D-size, RGB Color, 200dpi
336
D-size, Monochrome, 200dpi
780
A1-size, RGB Color, 200dpi
324
A1-size, Monochrome
744
Key technologies in Contex IQ scanners
As the world’s largest developer and producer of wide format imaging solutions, Contex leads the market with innovative technology and advanced scan and copy software solutions. The IQ series of scanners utilizes a long list of key technologies unique to a Contex scanner.
i1 profiles from X-Rite
Using X-Rite generated profiles ensures the highest possible color accuracy for the demanding customers. X-Rite is the global leader in color science and technology.
Adobe RGB, Device RGB and sRGB
Contex IQ series scanners have several different options for color space. In addition to the common sRGB the IQ scanners also offers color spaces with wider gamut as preferred by color specialists.
Adobe RGB and Device RGB has a larger color gamut than sRGB, hereby allowing differences in very bright and saturated colors to be maintained in the file.
Contex Natural Light
IQ scanners use new CIS modules with dual diffusion. By using correct diffusion in IQ scanners you get the most natural light in any CIS scanner.
Natural light is diffused light that creates soft shadows
Single sided LED light traditionally causes hard shadows.
Dual sided LED light normally creates 2 hard shadows.
Contex New Dual
Diffusion CIS Modules
in
IQ scanners
ensures
the must
natural
representation
of any image.
Live Matching of CIS modules
IQ scanners use new CIS modules with dual diffusion. By using correct diffusion in IQ scanners you get the most natural light in any CIS scanner.
New in IQ scanners: Live matching of CIS modules.
While scanning Contex Live Matching technology will monitor images and correct differences from one CIS module to the next. Without this there might be noticeable difference between CIS modules.
This unique technology is a key part of providing Market leading CIS solutions.
Traditional CIS scan without live matching.
The left side is darker than the right side
New CFR Technology
Contex innovative Color Fringe Removal has been further improved with the IQ scanners. Color fringe is a result of CIS scanners using flashing red, green and blue LED lights. This causes black lines and text to have colored edges especially when scanning at lower resolutions.
Thanks to Contex innovative thinking this effect has been completely removed in the IQ scanners with CFR.
Delivering 3 times the bandwidth of USB2, our unique Gigabit Ethernet implementation with xDTR2 is lightning fast and accelerates workflows even further via network sharing, where scans can be controlled from any computer.
2-year warranty and fast, easy parts replacement
With Contex, vital scanner parts replacement is quick, easy and hassle-free. Your Contex system monitors vital parts such as lamp and dust filters and lets you know when it’s time to consider a replacement.
The advantage?
You save time and money on technical service – and keep your business running without costly delays. And with a 2-year warranty on most parts, you can rest assured that your Contex won’t let you down. Please contact your local sales representative for additional information on pricing and options.
The warranty period is two (2) years from the date of invoice to the final customer.
Contex warrants that the scanners are delivered in the latest revision, free of defect arising from design, material or workmanship.
Contex' support obligation is limited to the repair or replacement of any faulty parts. The obligation only entails faulty items which are not results of:
Faults or negligence of the user
Improper or unauthorized use of the scanner
Attempts to repair the equipment by the user or other unauthorized persons
Causes external to the equipment or part thereof such as, but not limited to, power failure, catastrophes or unusual environmental conditions.
Consumables, such as parts affected by normal wear and tear (lamps, glass, white background plates, filters) are not covered by the 2-year warranty plan.
5-year spare parts support
In addition, Contex will guarantee spare parts support for a period of five (5) years from the date of discontinuation of the products, whenever this occurs, providing you the peace of mind that we will stand behind our products for many years after your purchase.
Description
Mfg#
Price
Cart
Third year coverage
(add on to 2 yr standard warranty) at time of scanner purchase
One year onsite post warranty
Use this option for cases where all warranty contracts have
expired and the end-user desires to purchase a onsite warranty.

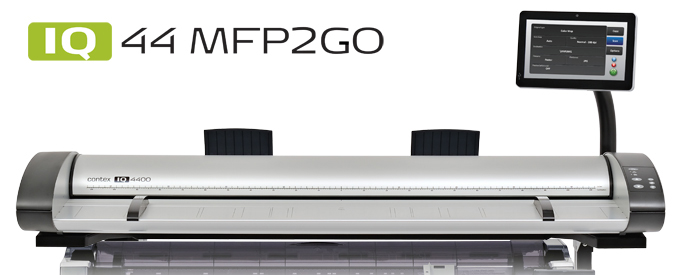

IQ large-format scanners offer you an outstanding collaborative workflow whether you work with in-house scanning activities or in project groups of global players. Using simple onetouch buttons you can scan directly over the network to your desk and continue working instantly. You get exceptional professional-grade quality with true 1200dpi optical resolution and patented technologies that ensure accurate results the first time.
Whether you are in a private business or government, the Contex IQ 44 MFP2GO is designed for collaboration projects through occasional scanning or the creation of digital archives. The 44" imaging area delivers clean, sharp image quality on technical documents, sketches, and maps.
Create custom single footprint MFP solutions in combination of a long list of supported printers.
MFP2GO Controller
Intel Cedarview D2550 Dual Core 1.86G, L2 1M, 10W
1 GB DDR3 RAM / 160 GB SATA
Windows 7 Embeded
Built-in scanning and copying software
10.1" LED LCD, 1024x600 Pixels
USB Printer Support / USB Scanner Support / USB Disk Support / GB Ethernet
3.3 lbs/1.5 kg, WxDxH: 10.4 x 1.5 x 6.7 inches (263 x 38 x 170 mm)
TIF, JPG, PDF and CALS
