Image Access WideTEK 25
Duplex Color FLATBED Large Format Scanner
List Price: $10,999.00
Contact us for bulk orders and discounts!
We have the lowest prices and ship internationally!
Sales taxes may apply for your state

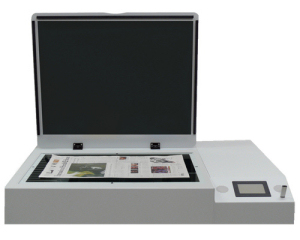

The new WideTEK 25 wide format flatbed scanner is the fully re-engineered successor to the WideTEK A2. Doubling the optical resolution, while offering the higher scanning speed, guarantees an excellent image output.
The WideTEK 25 can scan just about anything: from business cards to diagrams in A2 format, books, newspapers, maps, bound documents and more. The scanner needs only three seconds to scan the largest format. |
The integrated walk-up scanning software makes the scanner a truly shared device. It allows the user to scan and send images to a specific destination such as a network printer, any directory in the network, or to a USB stick; without having to work with a client PC. Simply walk up, scan and store or send the image, all through the use of the touch screen.

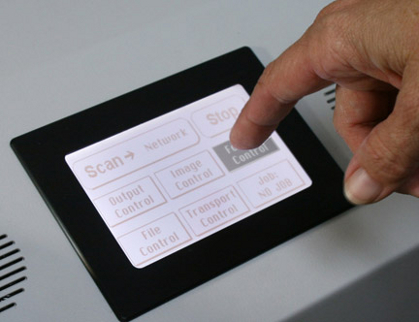

Nearly all functions can be executed directly at the scanner via the integrated touch screen. The Scan2Net® technology from Image Access forms the basis of the innovative user interface: intuitive to use via web browser or touch screen, providing the operator with direct control over practically every scanner function. Using the touch screen display, up to 30 different (password protected) jobs can be defined and stored. This allows operators to create and store templates and choose any predefined location on one of the network drives as a target for the scanned images.
|
 A further innovative feature of the WideTEK 25: All optical components are encapsulated in a hermetically sealed camera box, making it not only dust-free but also very low maintenance. Cleaning the mirrors and the mechanics is no longer required. State of the art illumination using bright white LEDs guarantees long lifetime (50,000 hour lifetime) and excellent scan results at a very low noise level in spite of its high speed.
The WideTEK 25 guarantees results at production scanning speeds for high throughput while delivering images in brilliant colors.
For demanding applications in a wide range of markets:
- Newspapers, periodicals, tabloids, catalogs and magazines
- Books
- Bound and stapled documents
- Maps, e.g. road maps and street maps
- Photographs
- Drafts on paper board as e.g. graphical designs, advertisements
|
| |
|
|
| |
|
- Features
- Specifications
- Compliance
- Easy installation via Scan2Net® Technology
- Compatible to all platforms like Windows, Linux, Mac OS, Unix
- Comfortable operation via touch screen or web browser
- The rotation while scanning and the position-correct output facilitate further processing
- Print on any network printer
- Remote maintenance and analysis
- Works Well With Others: Create JPEG, PDF (both searchable and image-only), or TIFF file formats and email or save to USB or network (PC, server, FTP).
- Easy to Use: Single button scanning, optional foot pedal, built in touch display
- Great Durability: WideTEK's metal casing resists scratches and dents, and its hermetically sealed optical components translate to less maintenance. We've even designed the case so that it works only with the WideTEK's tools that ship with each unit.
- High Duty Cycle: WideTEK scanners are designed for high-volume, professional use. Their duty cycles far exceed that of desktop scanners.
- Minimal Space: WideTEK's footprint isn't much larger than the maximum paper width it scans. With a footprint of only 40.4 x 30.8 inches, it takes surprisingly little space for full- scale operation.
- State of the Art Illumination: WideTEK's bright white LED illumination lasts significantly longer than other lighting systems. LED lights also consume less power and produce far less heat.
- No Warm Up Time: WideTEK scanners are ready to scan anytime you are. Other scanners can require several minutes to warm up before use.
- Room to Grow: Firmware upgrades are available online and are directly downloadable to the WideTEK using a standard browser.
- Remote Scanner Management: You're in full control from any browser. Change any and all scanner settings remotely or using WideTEK's built-in touch screen.
- Clear, Crisp, Colorful Scans: Fast scanning in B&W, grayscale and color, high-quality resolution of up to 1200 by 600 dpi. WideTEK's optics include multiple CCD arrays sealed in an airtight camera box for dust-free and quiet operation.
- High Speed Scanning: Image Access scanners always run at rated speeds regardless of how powerful your computer is. We do a full scan into the scanner memory at full speed, without any stops. We're the only scanner company that does that. Only the time between scanning and output are dependent upon the transfer speed of the network and the computer, and even our transfer rate is twice as fast as competing products because data is transferred to your workstation at 1 Gigabit speeds, while other scanners use significantly slower transfer rates (1/2 Gigabit or less).
|
|
Formats |
Autoformat Size Recognition
DIN Formats
US ANSI Formats
User defined Formats
DIN A5 to DIN A2
Legal, US C |
|
25 x 17.7 inches (635 x 420 mm)
|
|
|
|
Up to 17.7 inches (450 mm)
|
|
150 - 1200 dpi, available in 1-dpi steps
|
| Optical Resolution |
600 x 1200 dpi |
|
Performance Specifications: |
Scan Speed (24 bit, full bed)
|
300 dpi - 4.5 seconds
600 dpi - 8.2 seconds
|
|
Technical Specifications: |
Color Depth |
36 bit color, 12 bit gray scale |
Scan Output |
24 bit color, 8 bit gray scale, bitonal, photo mode |
File Formats |
JPEG, PNM, TIFF, TIFF G4 (CCITT), PDF (optional) |
Interface |
1 GBit Fast Ethernet with TCP/IP based Scan2Net® Interface |
Camera |
2x CCD camera, 45,600 pixels |
| Light Source |
White LEDs, classificated to IEC 60825-1: class 1,
no IR/UV emission |
|
Dimensions: |
Scanner Dimension (HxWxD) |
6.3 x 40.4 x 30.8 inches |
Scanner Weight |
90.5 lbs |
|
Electrical Specs: |
Electrical Connection |
100 - 240V AC, 50/60 Hz |
Power Consumption |
0.1 W (Stand-by) / 90 W (Ready to scan) / 105 W (Scanning) |
| |
| Ambient Conditions: |
| Operating Temperature |
41 to +104° F |
| Relative Humidity |
20 to 80 % (non-condensed) |
| Noise Level |
< 49-53 dbA (Scanning) / 33 dbA (Stand-by) |
ENERGY STAR qualified products and practices help you save money and reduce greenhouse gas emissions by meeting strict energy efficiency guidelines set by the U.S. Environmental Protection Agency and the U.S. Department of Energy.
The cETLus Listing Mark is used for products going into the Canadian and US markets. Products with the cETLus mark have been examined and have passed tests determining compliance with device safety requirements. The standards for IT-equipment are UL 60950 for the US market and CSA.C22.2 No 60950 for the Canadian market.
2004/108/EG (Electromagnetic compatibility):
EN 55022
EN 55024
EN 61000-3-2
EN 61000-3-3
2006/95/EG (Low voltage guideline):
EN 60950 (European Standard)
UL 60950 (US Standard)
CSA C22.2 No 60950 (Canadian Standard) for Safety of Information Technology Equipment
FCC Declaration:FCC 47 CFR Ch.1 Part 15This device complies with Part 15, Class B of the FCC Rules. Operation of this product is subject to the following two conditions:(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
DE 15679937WEEE is the European Community directive 2002/96/EC on waste for electrical and electronic equipment which, together with the RoHS Directive 2002/95/EC, became European Law in February 2003, setting collection, recycling and recovery targets for all types of electrical goods.
This device is in compliance with the requirements of RoHS-guidelines (Restriction of use of certain Hazardous Substances in Electrical and Electronic Equipment.)
|
|
